Continuous Strand Veil Surfacing Mat

Minimize Print-Thru within your Lamination

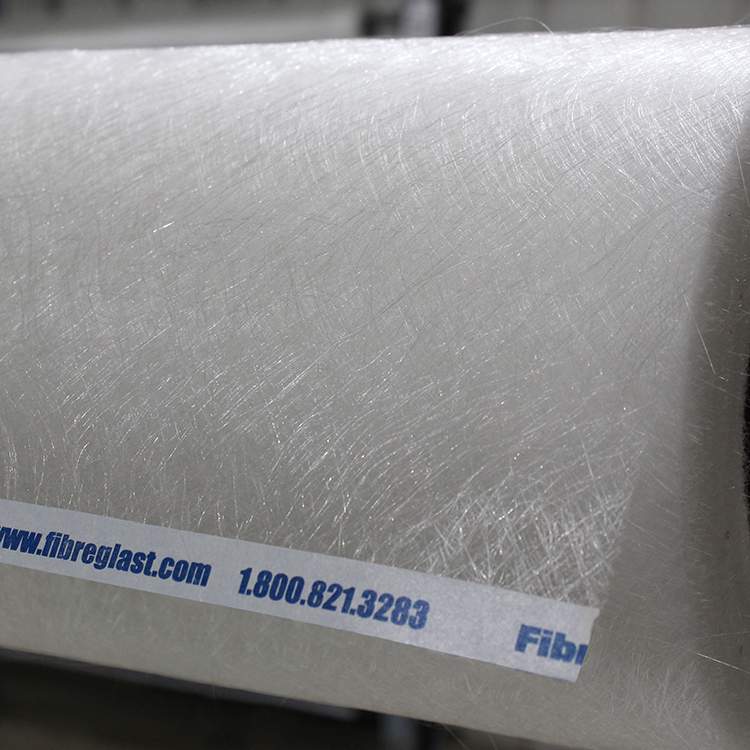

This surfacing mat is a thin ply of continuous strand fibers that are randomly looped throughout the roll of material. It serves two primary purposes:

• As a surface coat, it is often added to molds to minimize the pattern show-through of heavier fabrics applied later. It permits surface sanding of finished parts without compromising, or cutting into, the reinforcing fabric below.
• When used with sandwich core, it may be placed directly over core materials to optimize bond-line thickness. It will also keep excess resin from draining into honeycomb cells when a vacuum is not used.

It is extremely thin, with a consistency much like tissue paper, and is held together with only a light binder—it does NOT add strength or structural value to any application.

• 38" Wide
• 3.0 - 4.4 g/ft2
• 0.008" 0.012" thick

Binder is not compatible with any epoxy. PLEASE NOTE: It should be used with polyester or vinyl ester resin only.

Rolled surfacing mat ships in a long (45", 53", or 62") box. Click below on the "What to expect when you order Fabric" video to see how rolled fabrics are cut and shipped each time you order.

Continuous Strand Veil Surfacing Mat This surfacing mat is sold by the linear yard, either as a prepackaged quantity or by continuous yardage. Prepacks This fabric is available in pre-cut lengths that measure one yard (#260-F, roll), three yards (#260-G, roll), and five yards (#260-H, roll). Each is packaged and sold separately. For your convenience, these "prepacks" can be purchased in any combination. However, if the length for any one cut of mat totals 10 yards or more, we suggest you purchase it in continuous, "cut to length" yardage. Continuous, "Cut to Length" Yardage If you know in advance that you intend to purchase 10 yards or more of mat, it should be ordered in continuous, "cut to length" yardage. In this case, mat will be cut once according to the total yardage ordered, and customers receive a price-per-yard discount as compared to prepacks. Quantity discounts continue to deepen as the yardage increases for any one cut of mat.
