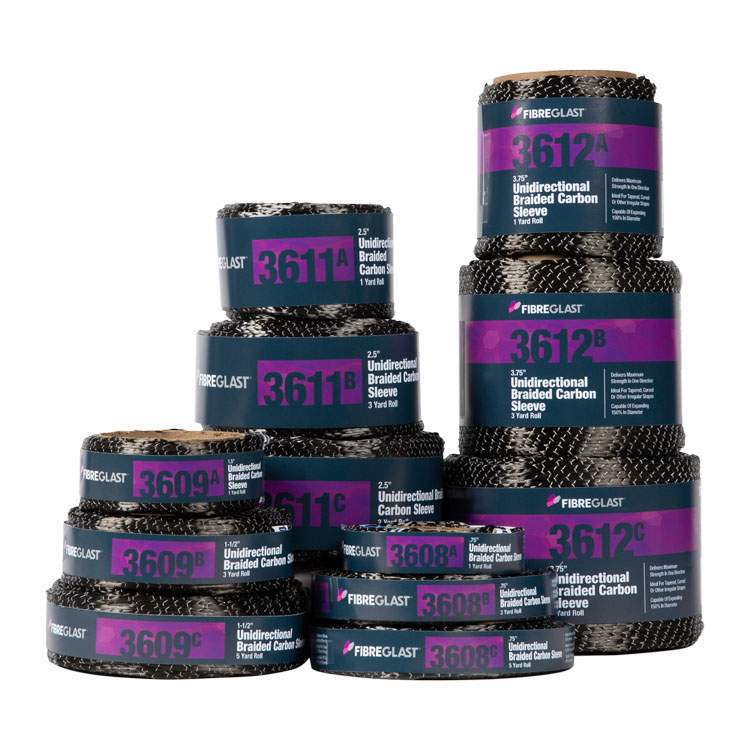

Unidirectional Carbon Fiber Sleeves

Details

Our Unidirectional Carbon Fiber Sleeves are ideal for tapered, curved or other irregular shapes and feature ultimate strength in one direction. These unidirectional sleeves are braided with small elastic bias yarns offering conformability, fitting snugly while uniformly distributing the axial reinforcements around the perimeter of the part. Our unidirectional carbon fiber sleeves even conform to parts with varying diameters, irregular shapes, or varying cross-sections like prosthetics and hockey sticks. These sleeves are available in 3/4”, 1-1/2”, 2-1/2” and 3-3/4” diameters.

Features

  • Small elastic bias yarns for great conformability, and ease of layup
  • Unidirectional fibers for strength in one direction
  • Wets out easily with resin
  • Fatigue resistance for durable strength

Tips

  • The sleeves can be increased from their base diameter at an average rate of 127%. This means that our 1-1/2" sleeve can be can be expanded to 2.625" in diameter.
  • Laying up sleeves is predictable, repeatable, and suitable for precise manufacture of composite parts. Unidirectional sleeves fit snugly and uniformly distributing the axial reinforcements around the perimeter of the part, while offering ultimate strength in one direction.
  • To maximize the fiber properties, use with epoxy or vinyl ester resins.
  • Polyester resin is also suitable, and is primarily used in cosmetic applications where higher strength-to-weight ratios are not a factor.

Specifications

Diameter 0.75" – 3.75"
Fabric Weight 15.2 - 19.02 oz/yd²
Tensile Strength 610-700 KSI
Tensile Modulus 31-35 MSI
Expansion 80-175%

Guarantee

Fibre Glast is committed to ensuring that every roll of fabric we handle is First Quality and manufactured to the highest standards, so that you can expect the same properties and handling characteristics every time you order.


Click here for more information on our First Quality Guarantee.

Pricing

My Shopping Cart
Item Quantity Description Price Quantity
3608 3/4", 19 oz/sq yd, 3K - Cut to length by yard
36083/4", 19 oz/sq yd, 3K - Cut to length by yard
$9.45/ea
$9.45/ea
min. 10
$0.00
3608-A 3/4" - 1 yd Roll
3608-A3/4" - 1 yd Roll
$12.95/ea
$12.95/ea
$0.00
3608-B 3/4" - 3 yd Roll
3608-B3/4" - 3 yd Roll
$37.95/ea
$37.95/ea
$0.00
3608-C 3/4" - 5 yd Roll
3608-C3/4" - 5 yd Roll
$54.95/ea
$54.95/ea
$0.00
3609 1-1/2", 15.5 oz/sq yd, 3K - Cut to length by yard
36091-1/2", 15.5 oz/sq yd, 3K - Cut to length by yard
$15.95/ea
$15.95/ea
min. 10
$0.00
3609-A 1-1/2" - 1 yd Roll
3609-A1-1/2" - 1 yd Roll
$22.95/ea
$22.95/ea
$0.00
3609-B 1-1/2" - 3 yd Roll
3609-B1-1/2" - 3 yd Roll
$62.95/ea
$62.95/ea
$0.00
3609-C 1-1/2" - 5 yd Roll
3609-C1-1/2" - 5 yd Roll
$99.95/ea
$99.95/ea
$0.00
3609-SWATCH Swatch (1-1/2" x 6")
3609-SWATCHSwatch (1-1/2" x 6")
$3.25/ea
$3.25/ea
$0.00
3611 2-1/2", 16.75 oz/sq yd, 3K - Cut to length by yard
36112-1/2", 16.75 oz/sq yd, 3K - Cut to length by yard
$27.95/ea
$27.95/ea
min. 10
$0.00
3611-A 2-1/2" - 1 yd Roll
3611-A2-1/2" - 1 yd Roll
$37.95/ea
$37.95/ea
$0.00
3611-B 2-1/2" - 3 yd Roll
3611-B2-1/2" - 3 yd Roll
$99.95/ea
$99.95/ea
$0.00
3611-C 2-1/2" - 5 yd Roll
3611-C2-1/2" - 5 yd Roll
$154.95/ea
$154.95/ea
$0.00
3612 3-3/4", 16.75 oz/sq yd, 3K - Cut to length by yard
36123-3/4", 16.75 oz/sq yd, 3K - Cut to length by yard
$39.95/ea
$39.95/ea
min. 10
$0.00
3612-A 3-3/4" - 1 yd Roll
3612-A3-3/4" - 1 yd Roll
$55.95/ea
$55.95/ea
$0.00
3612-B 3-3/4" - 3 yd Roll
3612-B3-3/4" - 3 yd Roll
$159.95/ea
$159.95/ea
$0.00
3612-C 3-3/4" - 5 yd Roll
3612-C3-3/4" - 5 yd Roll
$249.95/ea
$249.95/ea
$0.00

View Cart
0

Total items

$0.00

Product subtotal

Taxes, discounts and shipping calculated at checkout.
